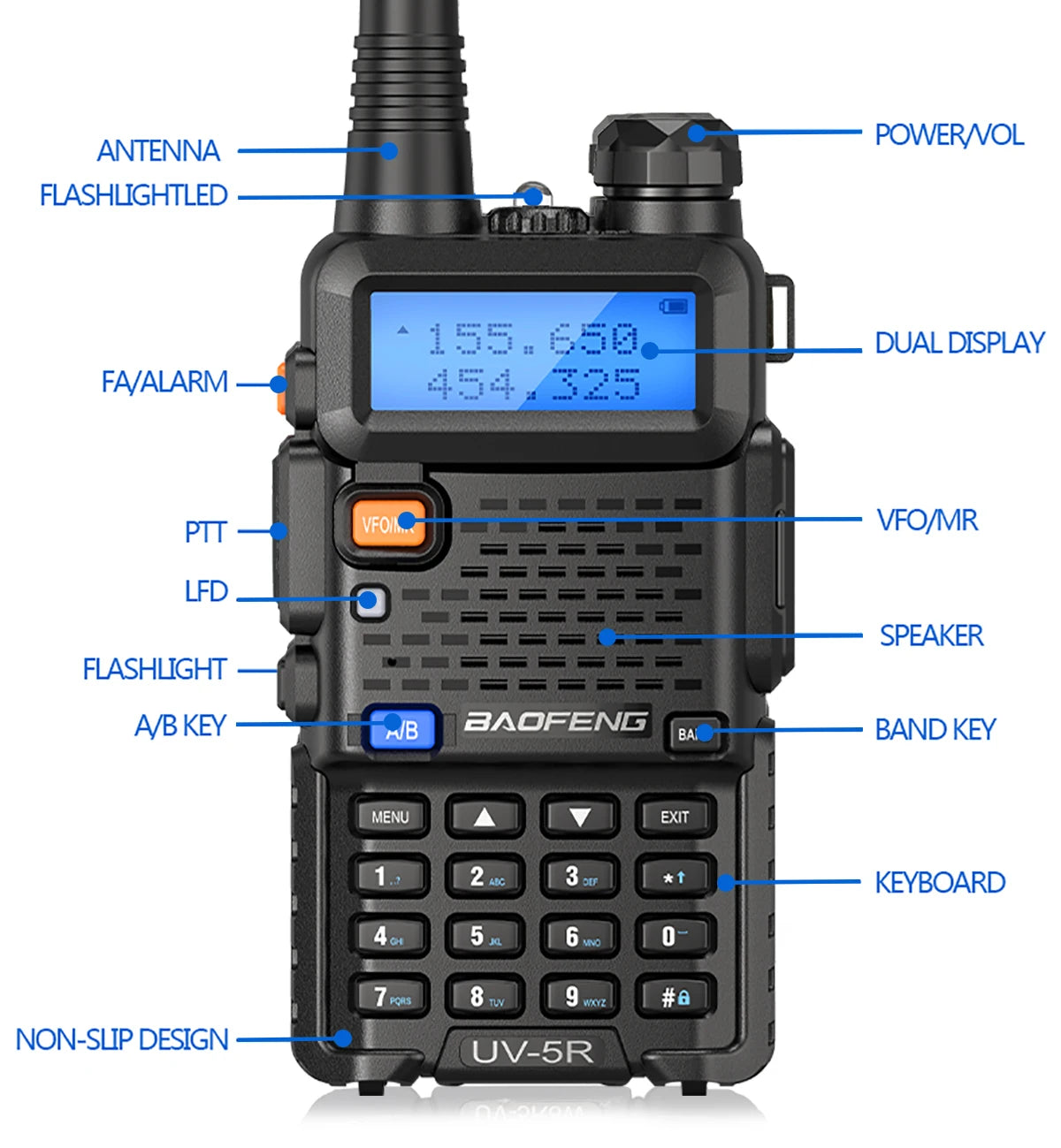

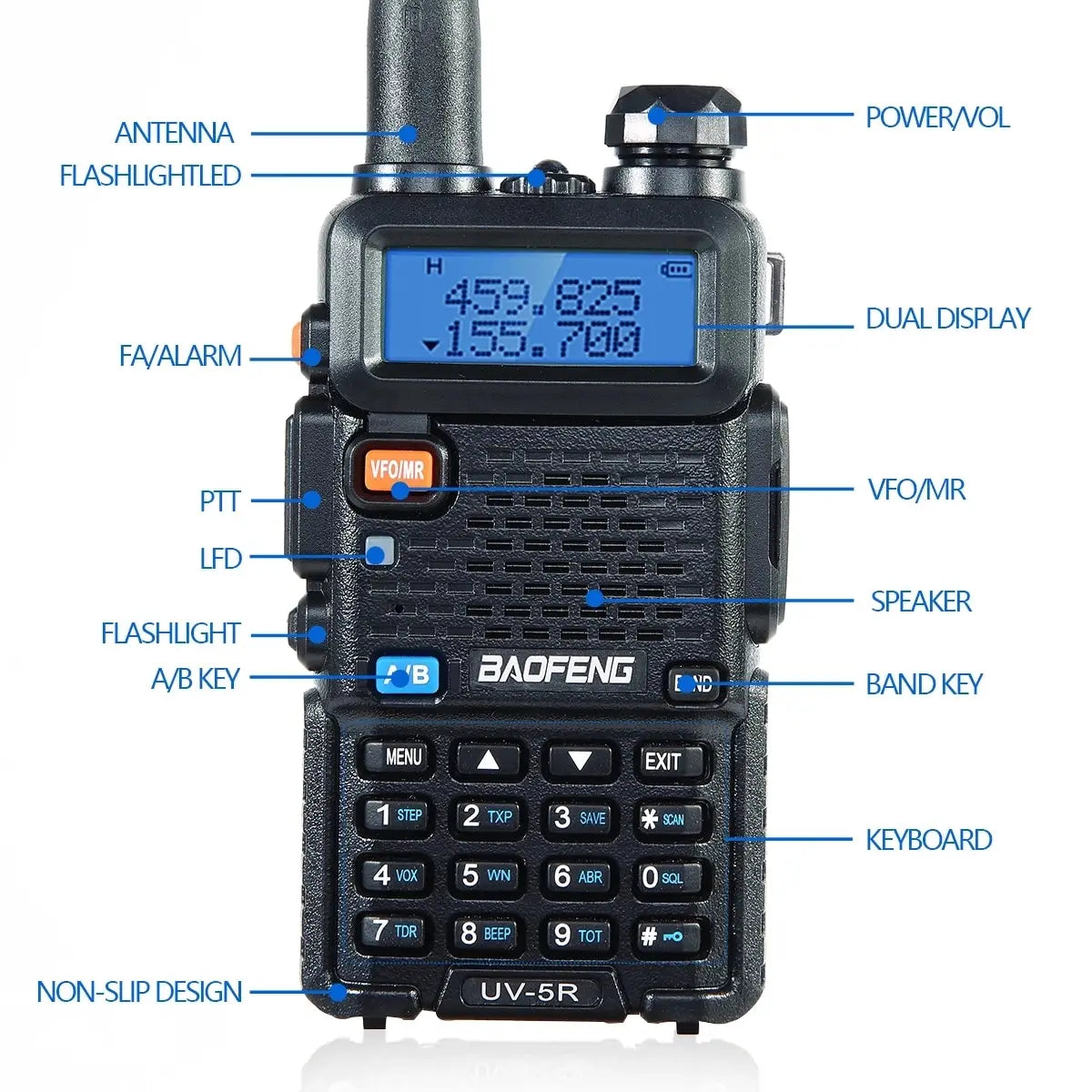

Baofeng UV-5R Dual Band VHF UHF Portable Two-Way Radio Transceiver

Baofeng UV-5R Dual Band VHF UHF Portable Two-Way Radio Transceiver

$88.99 USD
$0.00 USD $88.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Plug standard

Keep in touch on outdoor outings with a compact Baofeng UV-5R handheld radio, featuring VHF and UHF bands, an FM radio, and an emergency alarm.

  • Dual-band communication: You can use VHF and UHF frequencies, with dual display and standby for monitoring two frequencies.
  • Flexible setup: Store up to 128 channels, enter frequencies manually, or program the radio with PC software that works with CHIRP.

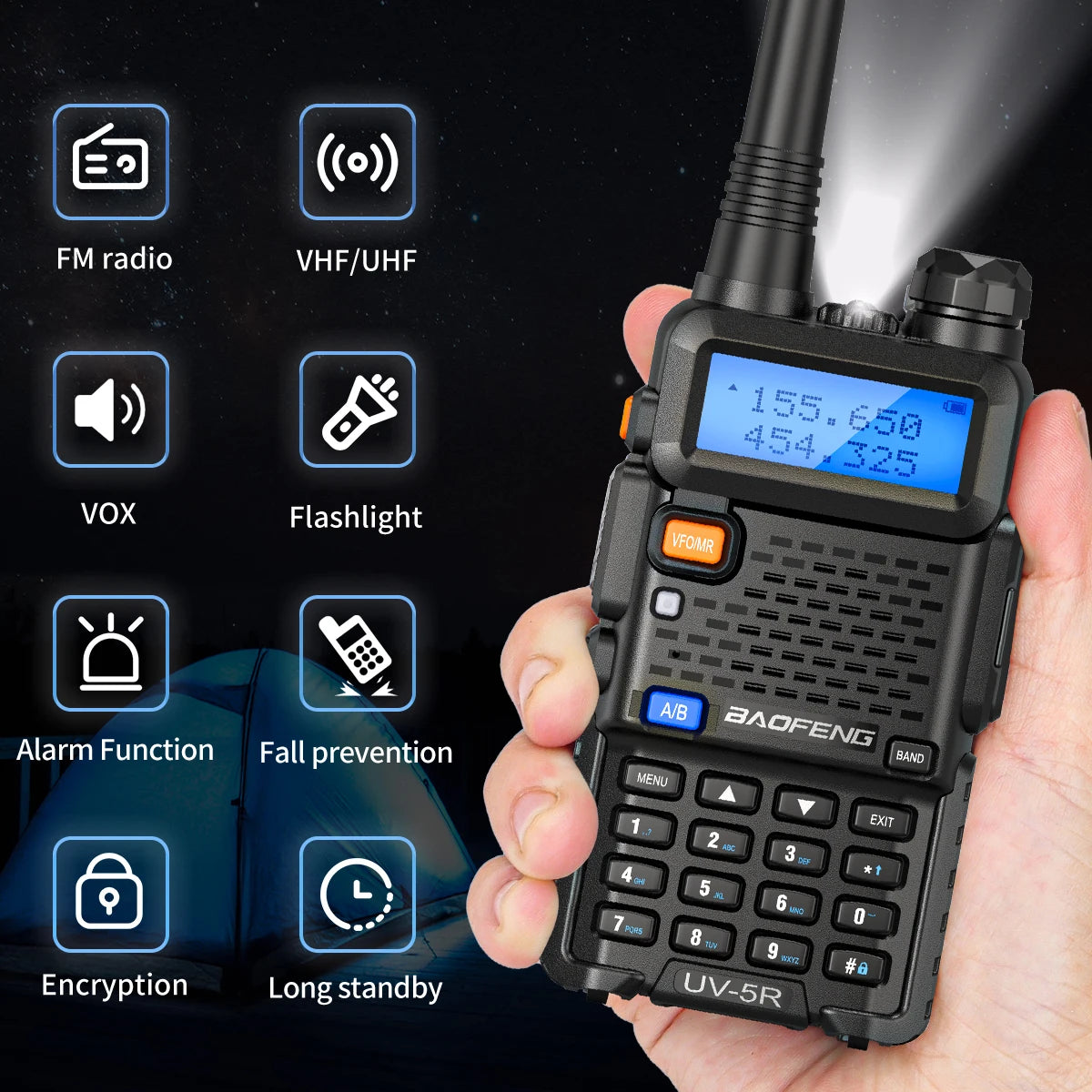

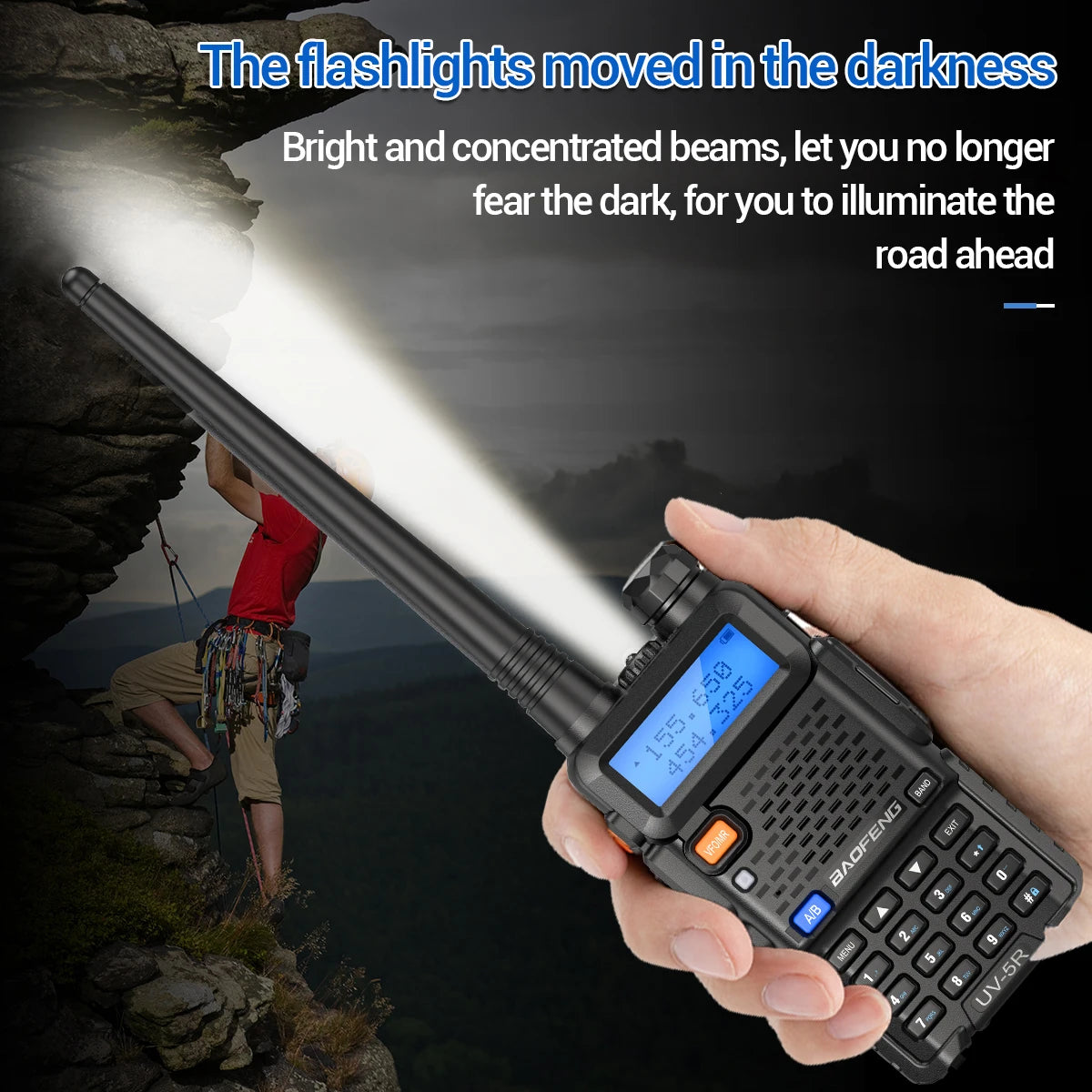

  • Useful on the go: Tune in to FM radio, use the built-in LED flashlight, or activate the SOS alarm with its siren and flashing light.

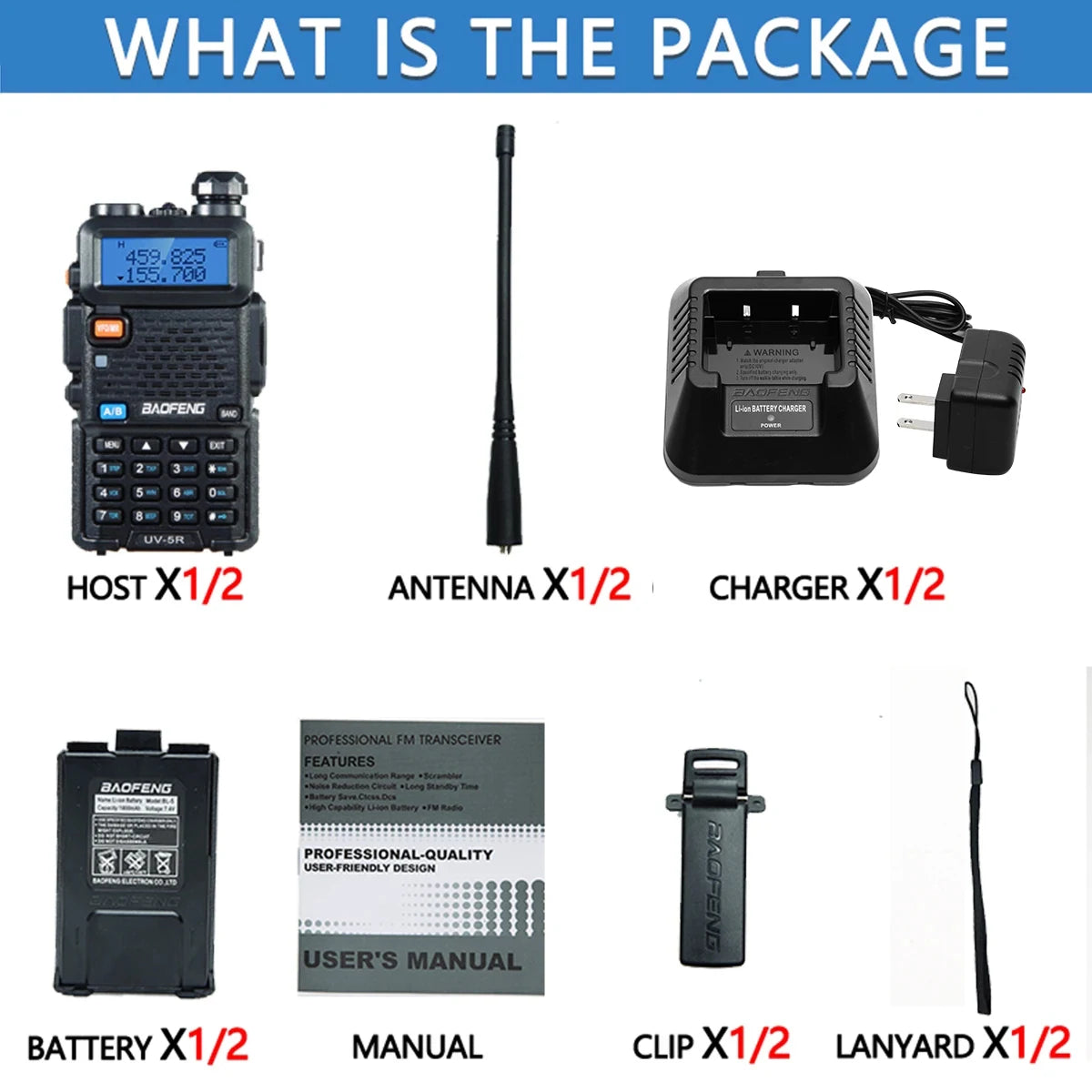

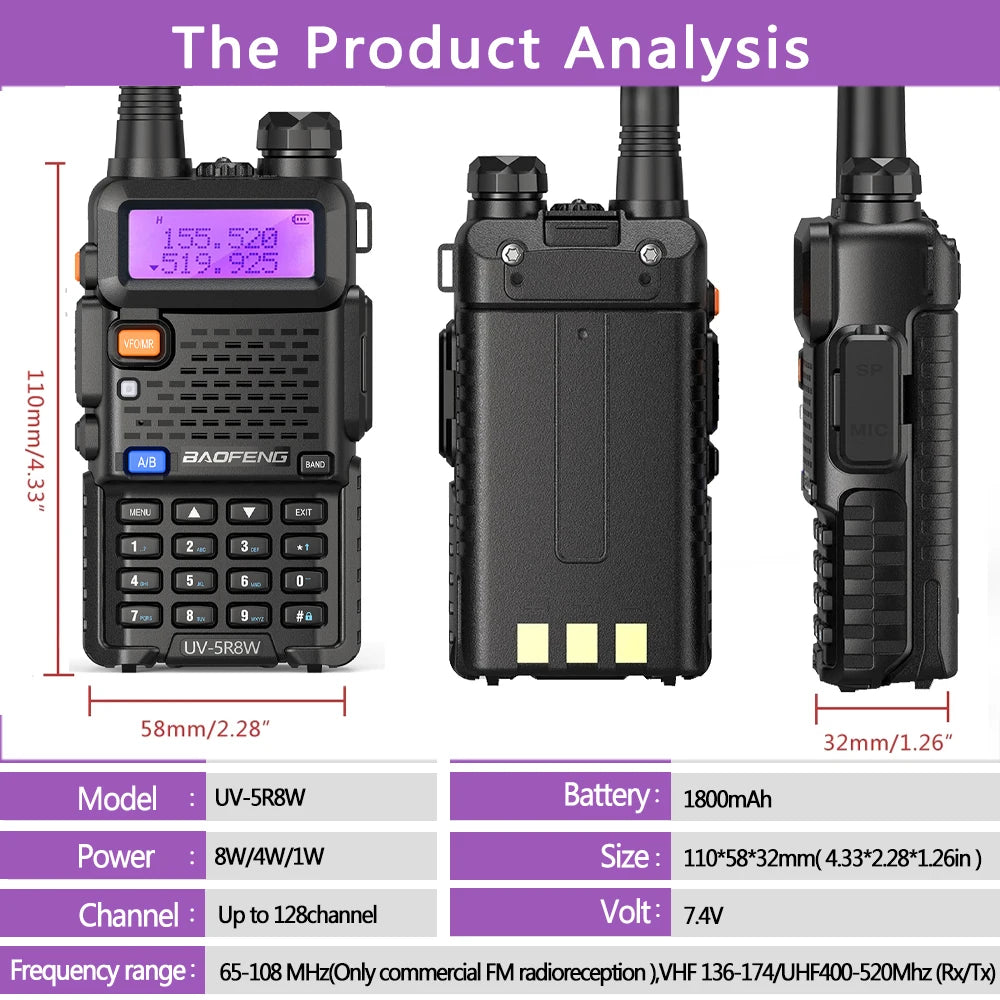

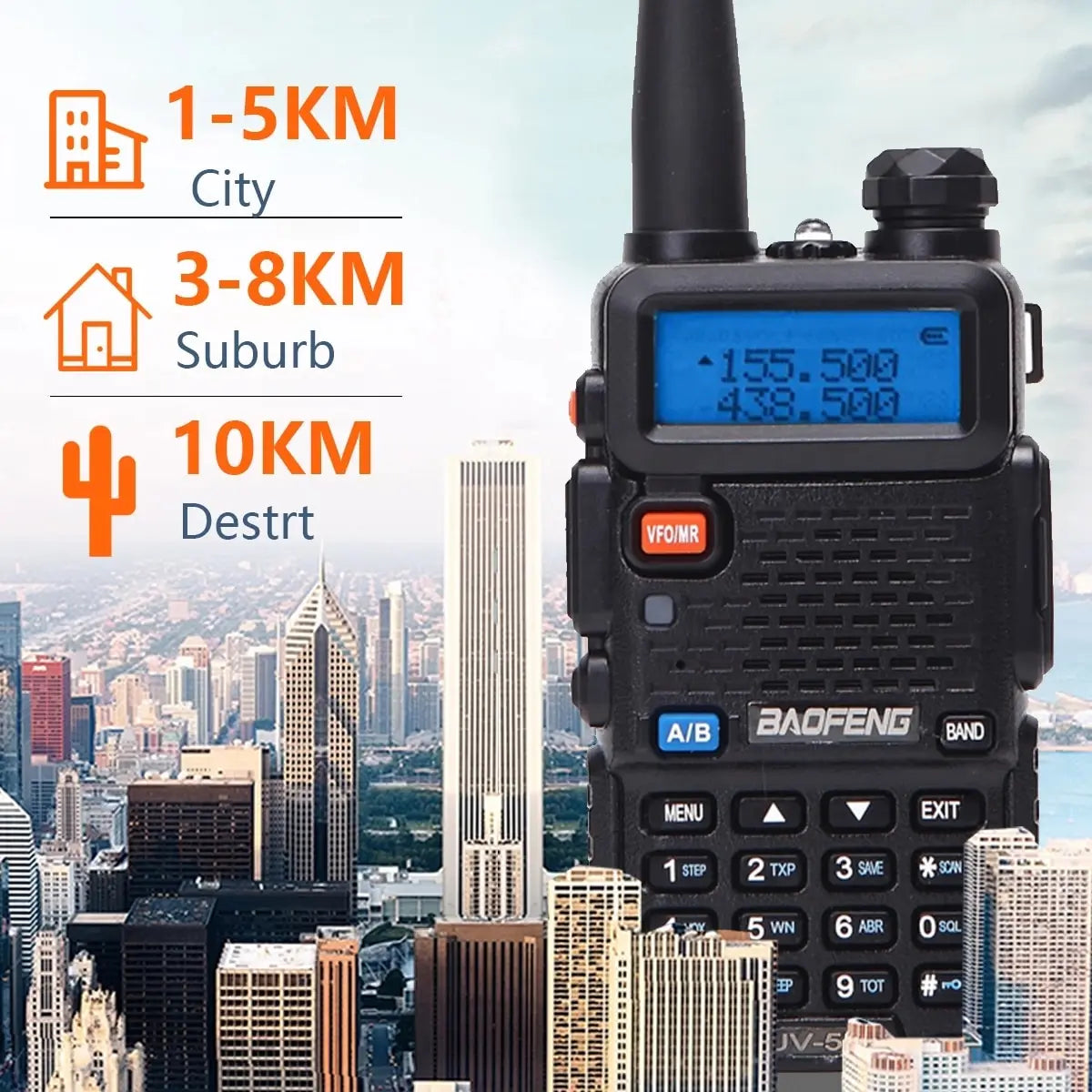

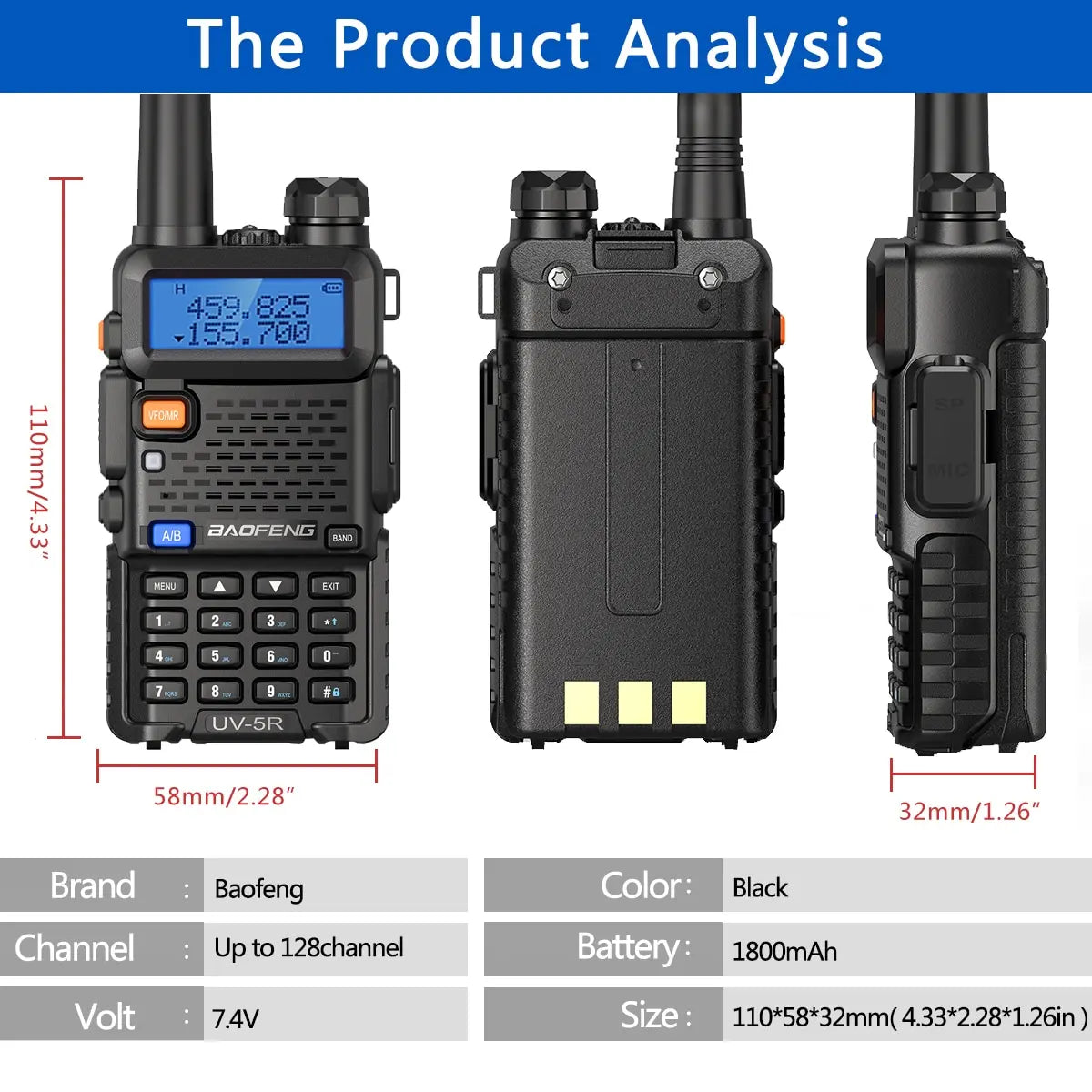

  • Portable power: The rechargeable 1800mAh battery, belt clip, wrist strap, and 58 × 32 × 110mm body make it convenient to carry. Communication range varies with surroundings: the details cite 3–10km in open areas and 2–5km in towns. This radio is not water-resistant.

AllofouritemsareBrandNew

Model

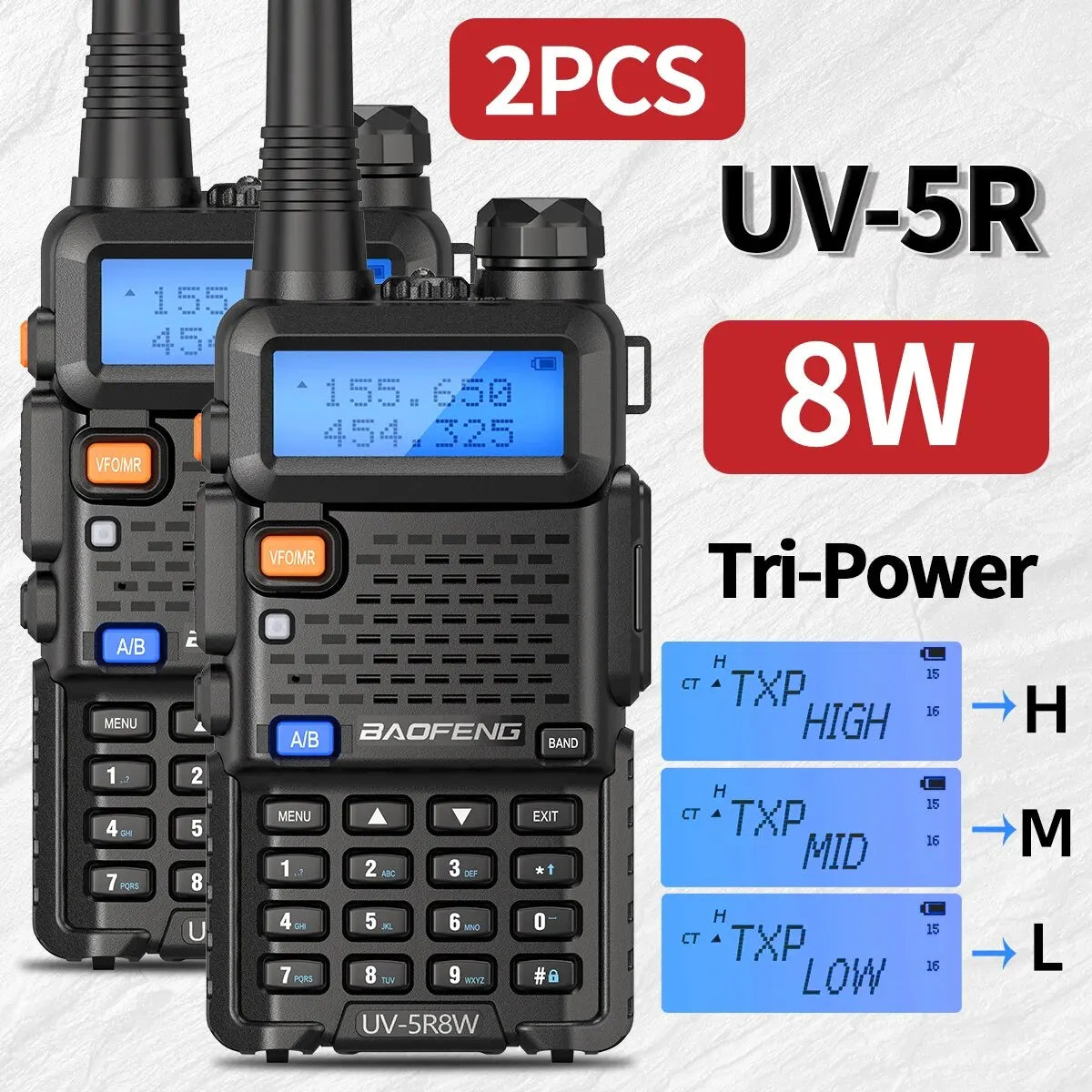

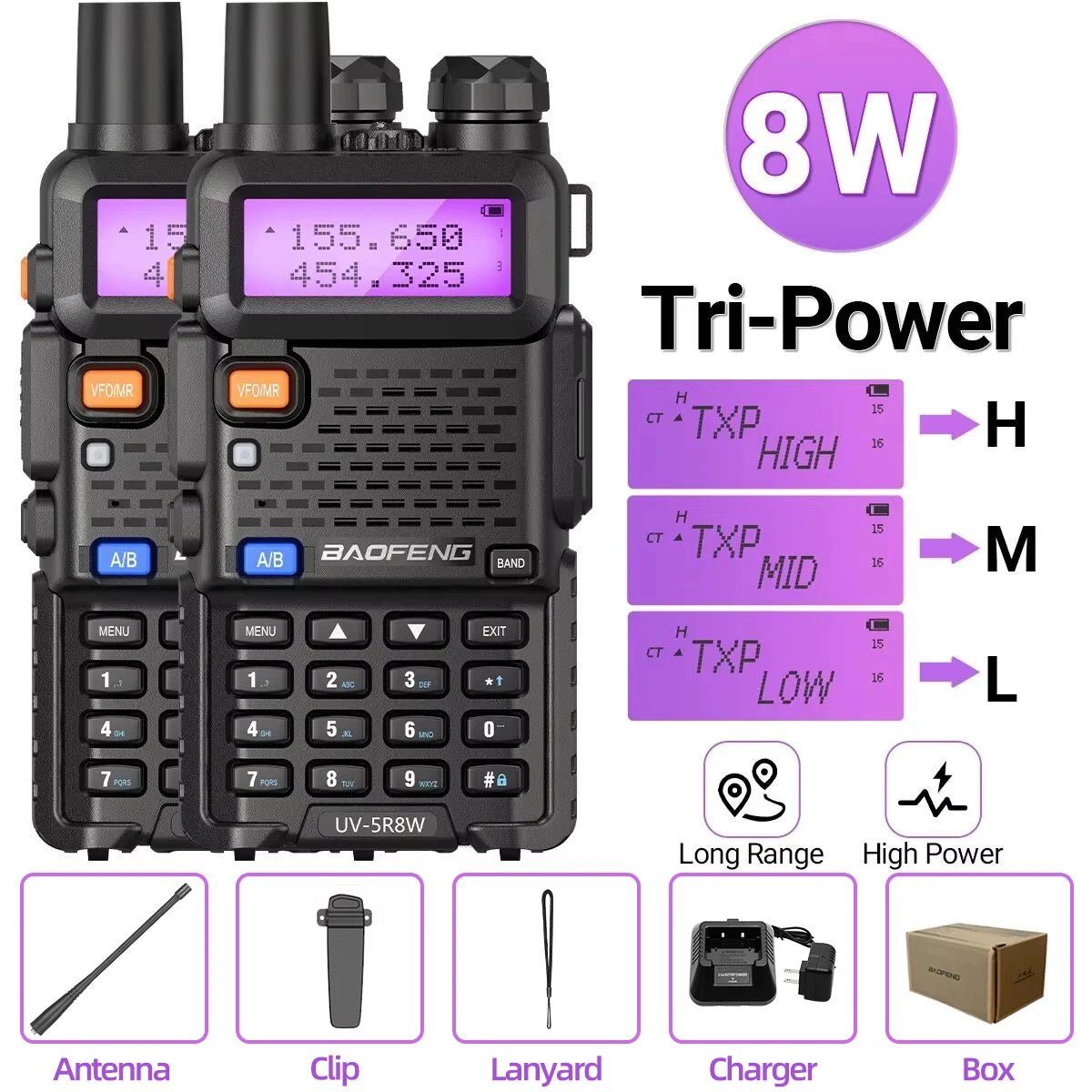

Baofeng UV 5R 5w/8W

Dual Band/Dual Display/Dual Standby

A / B band independent operation (UVUUV)

128groups channels storage

Short cut menu operation mode

VFO&Memory channels scan

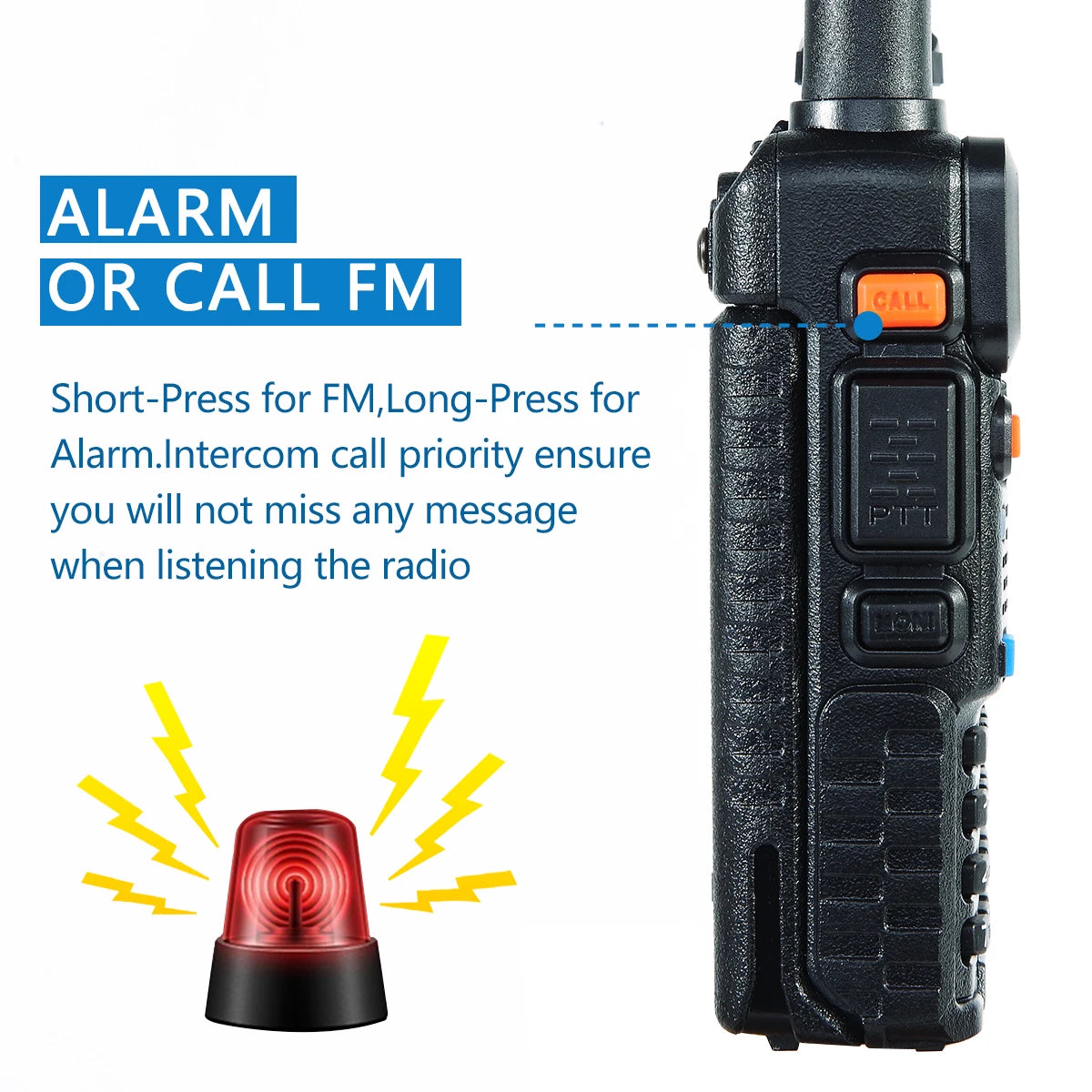

Emergency Alarm

Time-out Timer(TOT)

0~9 gradesVOX selectable

PTT&ANIES

FM radio and 25 stations storage

Voice companding

50CTCSS/104DCS

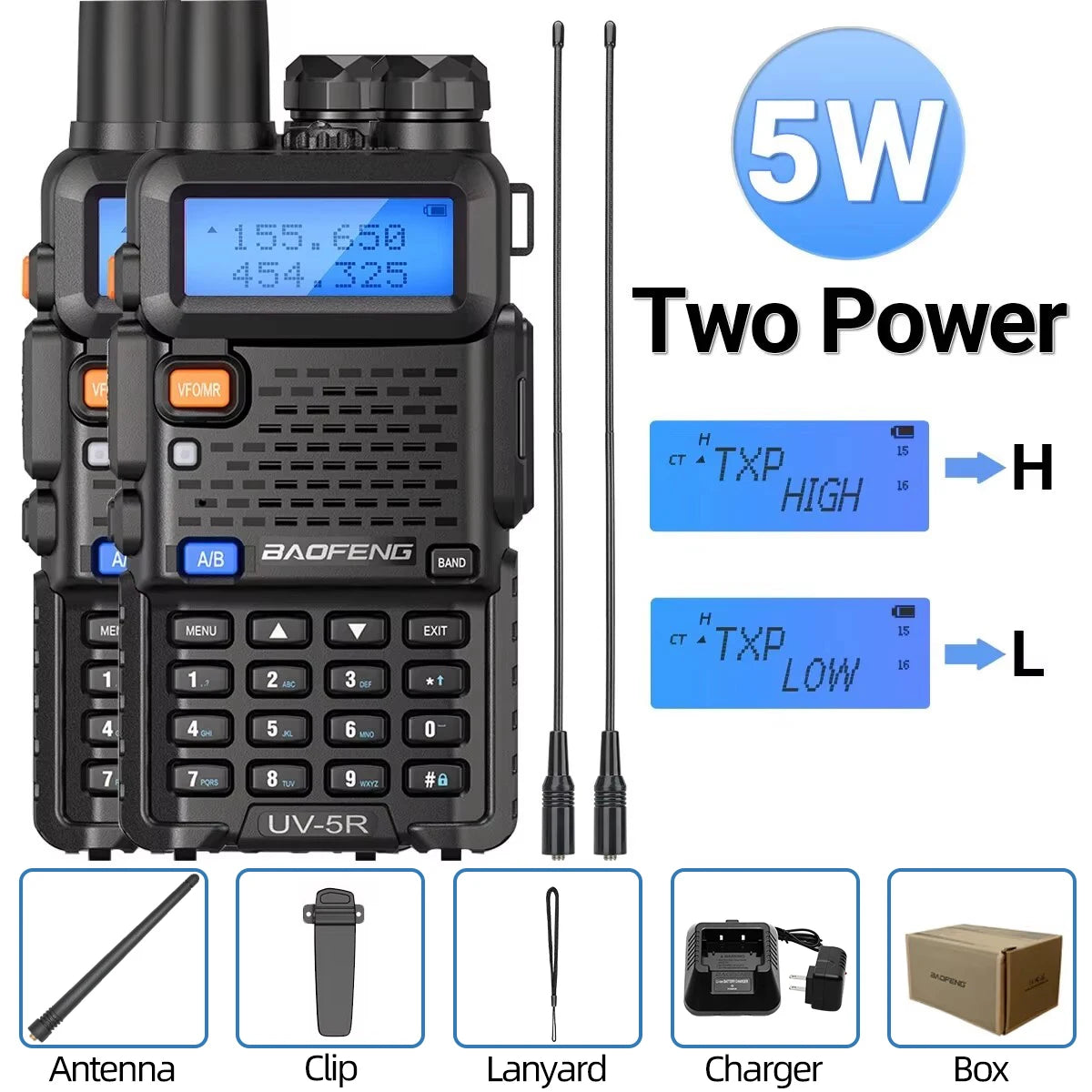

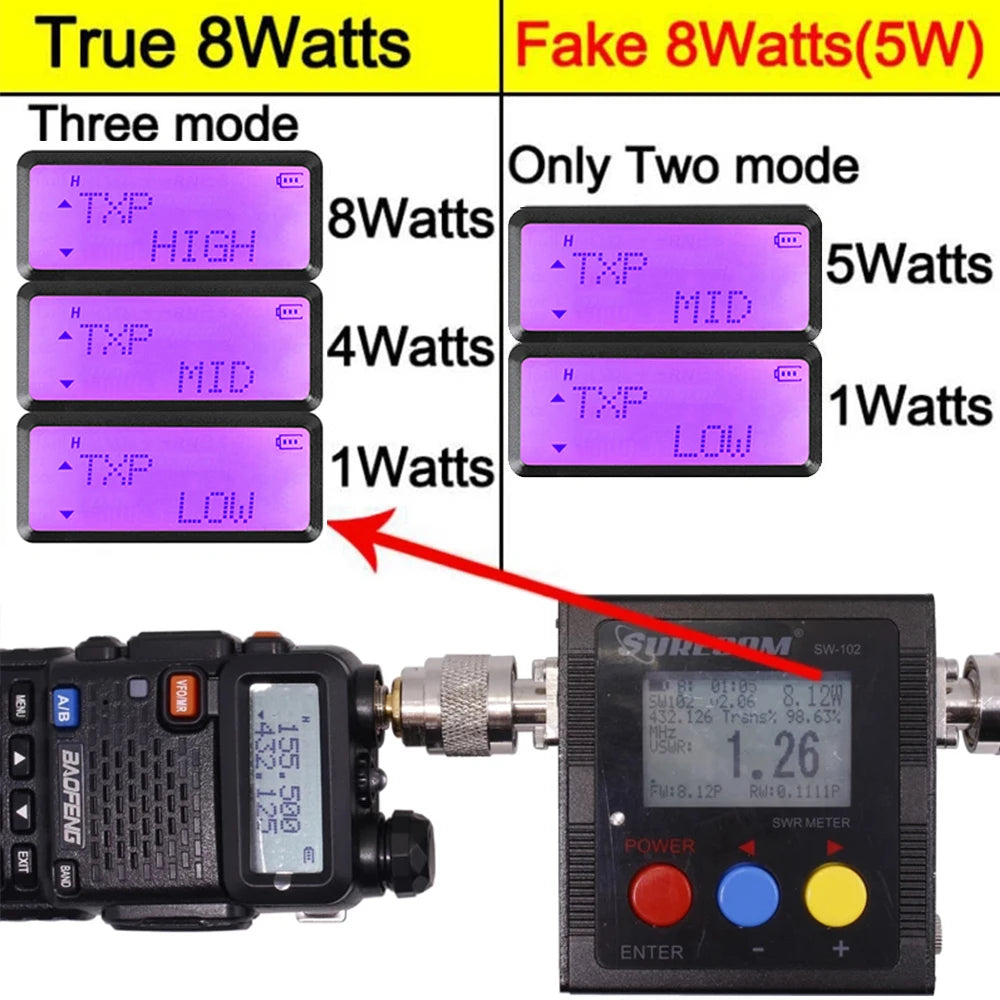

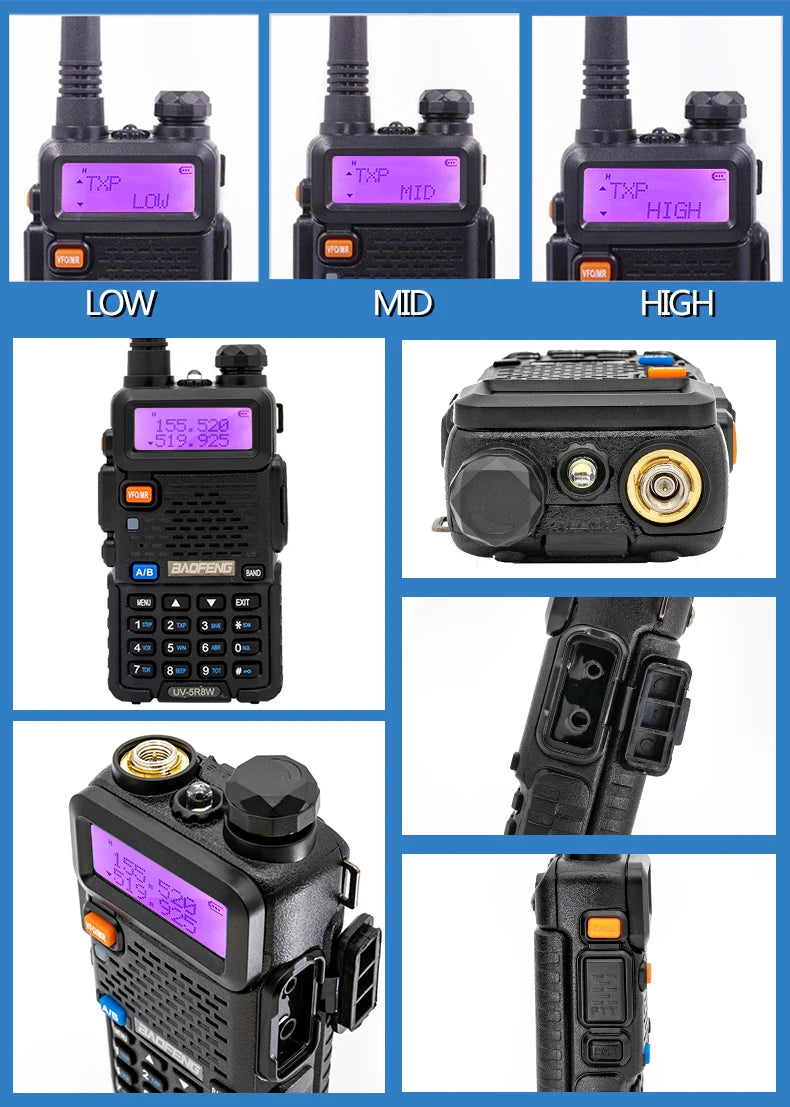

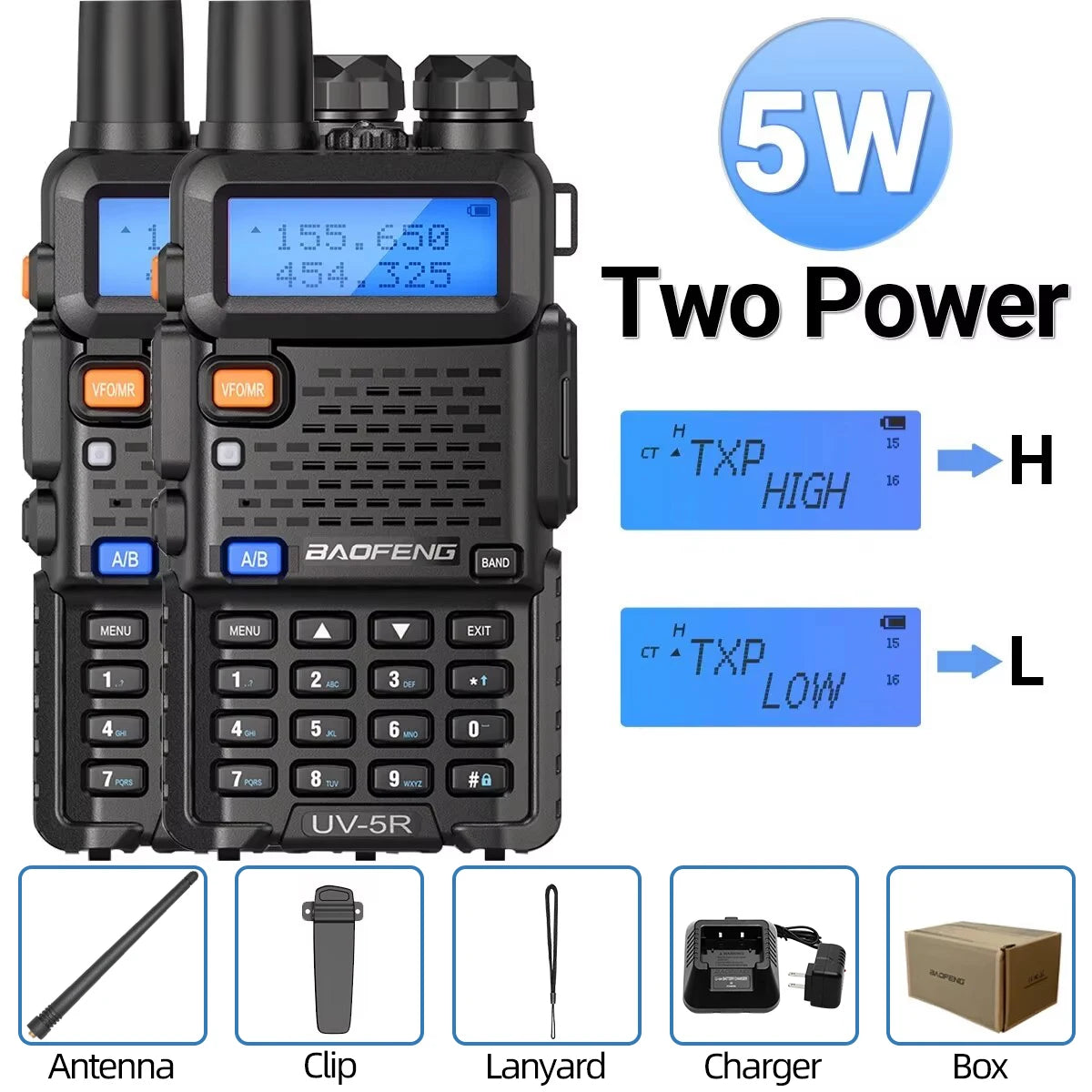

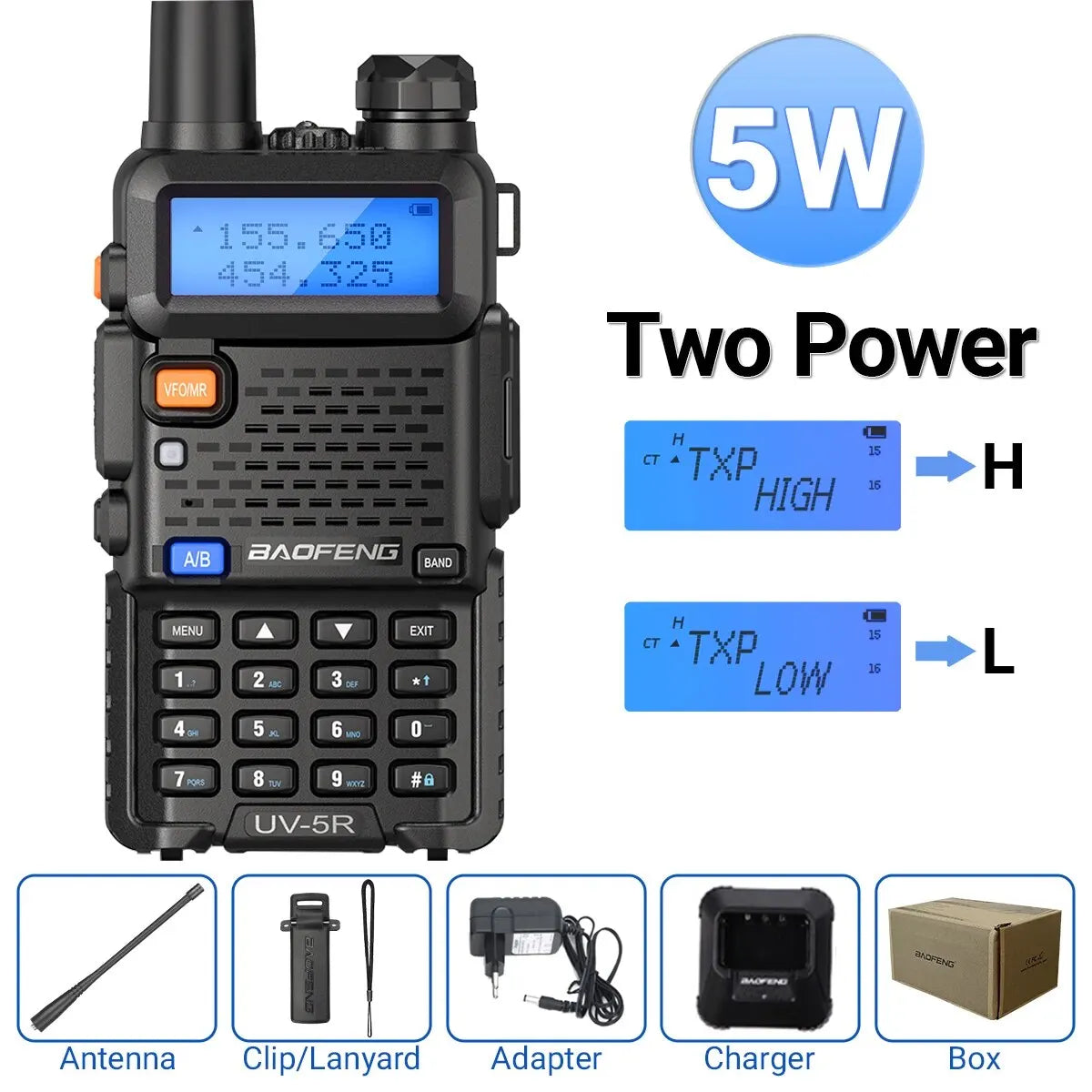

High/LowTXpowerselectable

Busy channel lock-out(BCLO)

DTMF function

OFF SET function

Wide/Narrow Band(25kHz/12.5kHz)

Yes


VOX function

Yes


Busy lockout function

Yes


Scanning function

Yes


Monitor function

Yes


Time-out Timer(TOT) function

Yes


LCD display

Yes


Dual display

Yes


Battery voltage display function

Yes


Channel name display and editing functions

Yes


Signal strength indicator

Yes


Keypad lock function

Yes


Built-in Ledtorch

Yes


FM radio

Yes


Wireclone function

Yes


Emergency alarm function

Yes


Low battery alarm

Yes


Power saving function

Yes


High/Low TX power selectable

Yes


ROGERSET

YesYes


Chinese and English voice prompt

Yes


PC software programmable

Yes


Rated Voltage

7.4VDC±10%

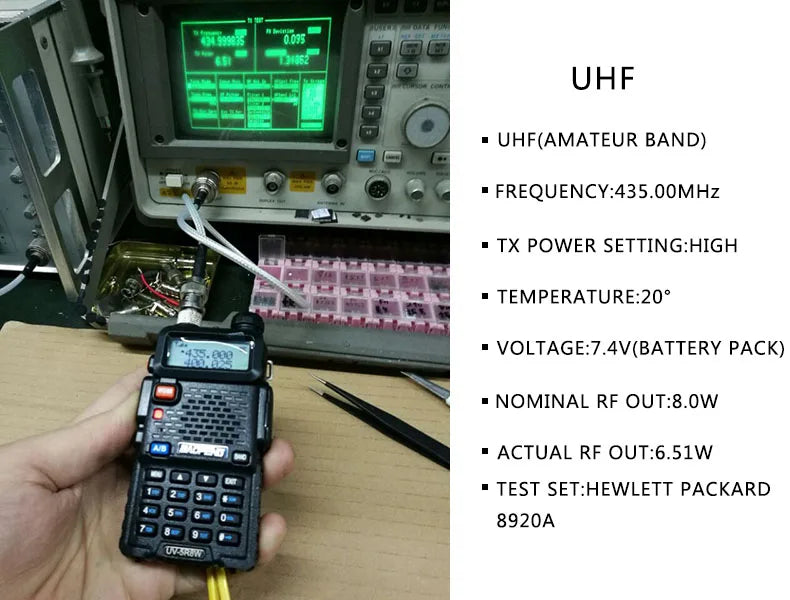

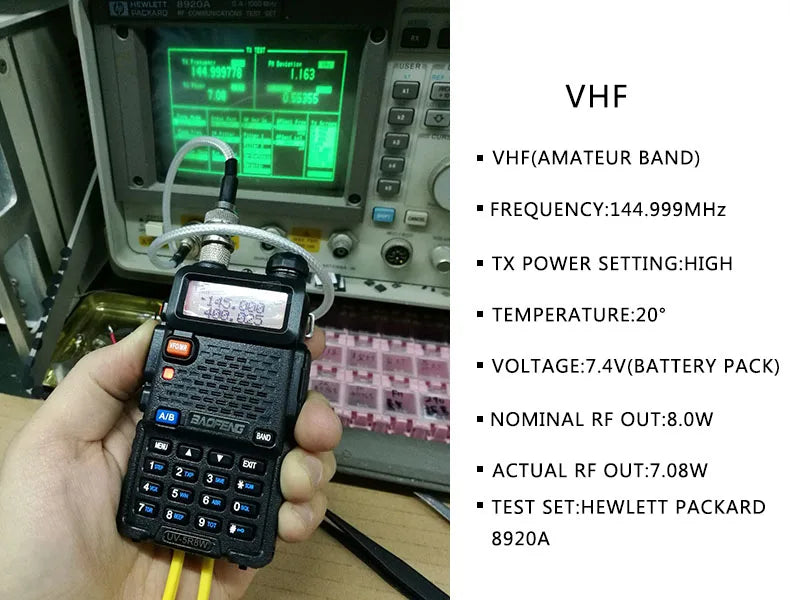

Output power

<=5W

Battery type

Li-ion batteries

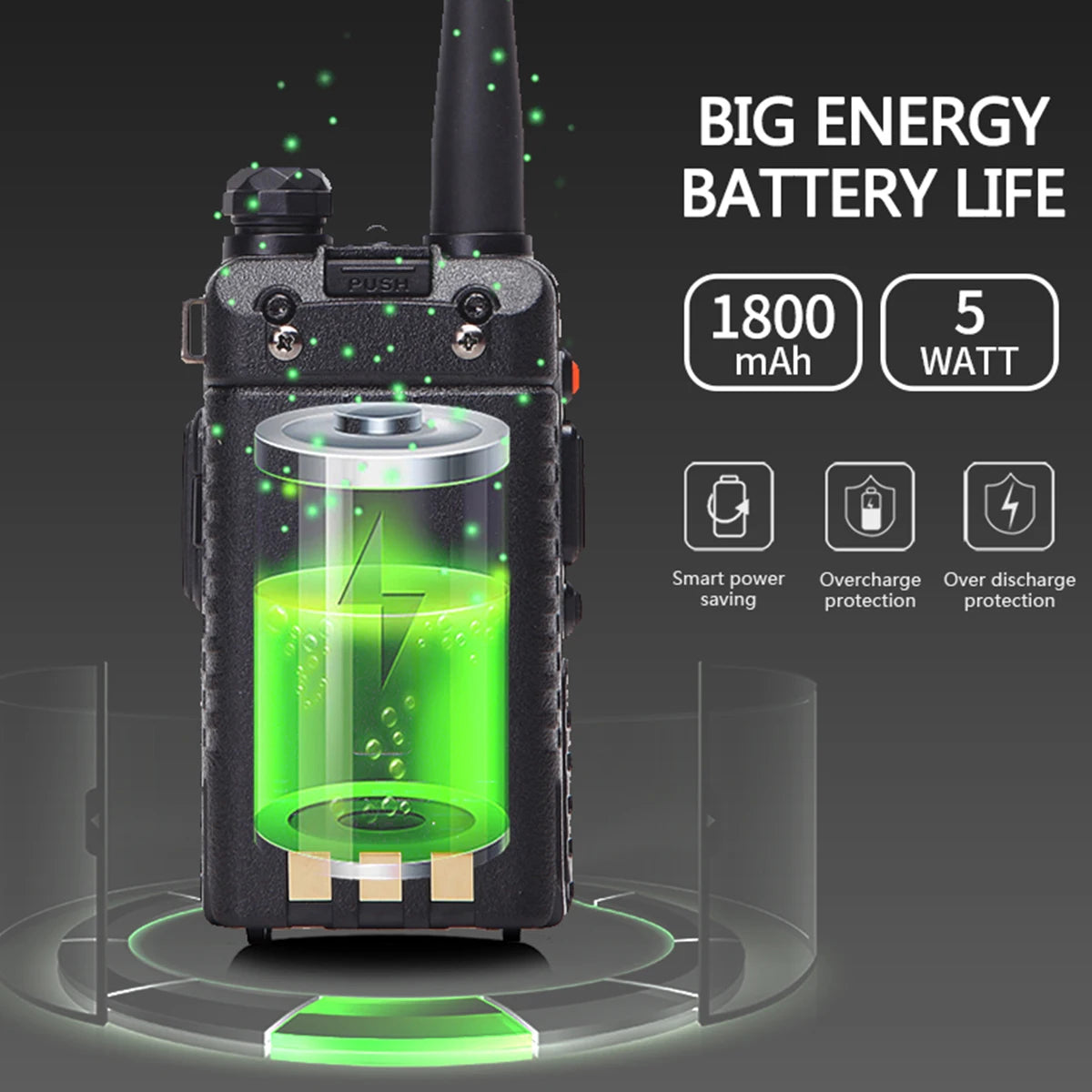

Battery capacity

1800mAh

Working temperature

-20~+50 ° C

Antenna Impedance

50ohm

Weight

255g

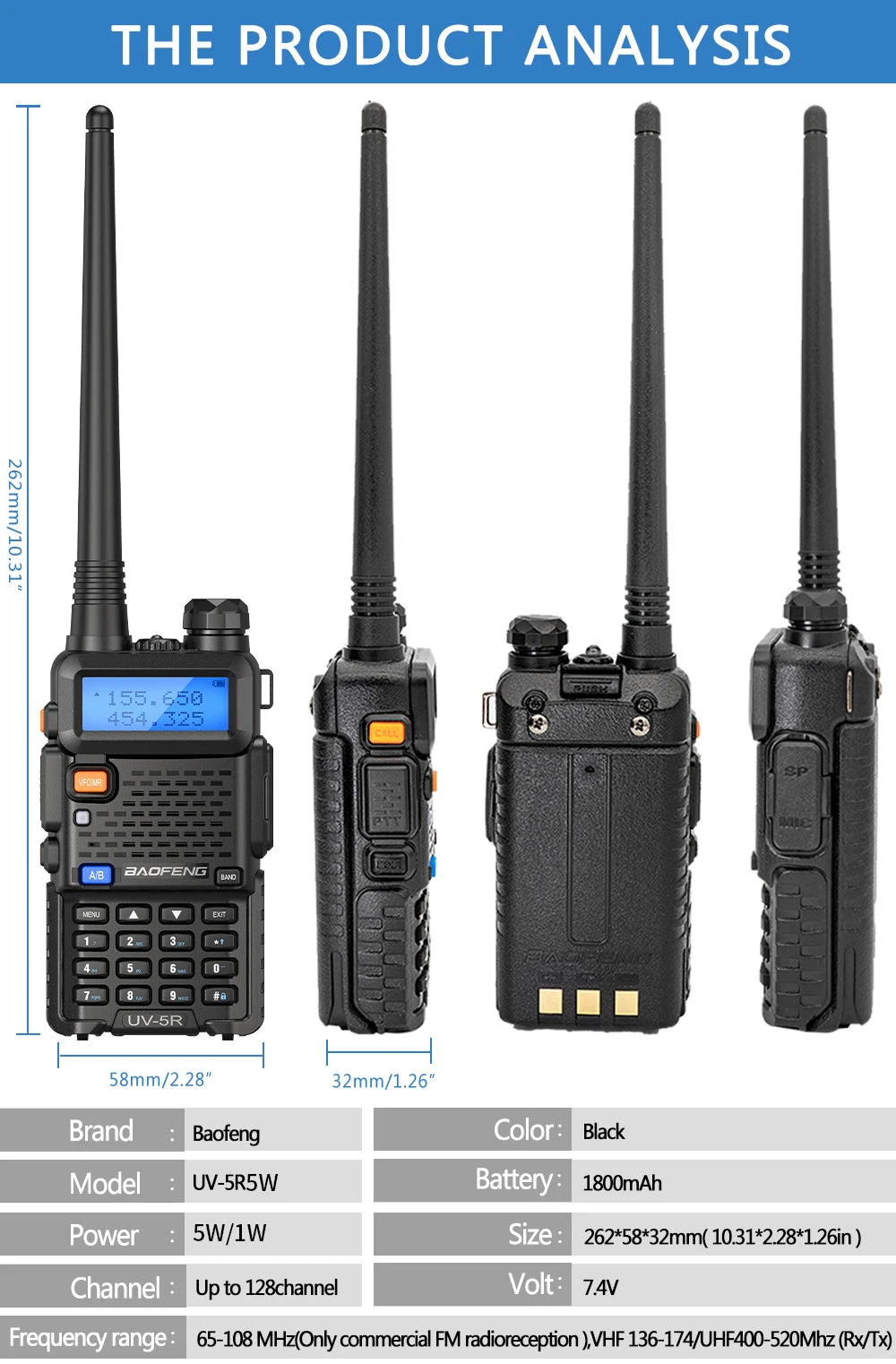

Dimension(LXWXH)

58X32X110mm(NotAntenna)

Frequency stability

±2.5ppm

Carier wave tomerance

5ppm

Modulation

16K Ø F3E/11K Ø F3E

Max frequency deviation

<5kHz(Wide)
<2.5kHz(Narrow)

Modulation character

6dB perfold frequency patch

Emission current

<1.6A(5W)

CTCSS/DCS

0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow)

Sensitivity

${132}

Silentsensitivity

${134}

Intermediation Distortion

<10%

Intermodulation

8-12mv

Adjacent channel selectivity(wide/narrow)

<-65dB(Wide)<-60dB(Narrow)
